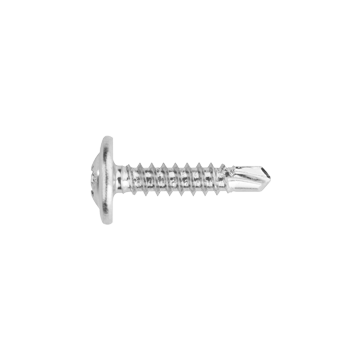

8X1/2″ DP2 Pan Head – TRACER® D.S. Round Washer Head

Product: TRACER® D.S. Round Washer Head.
Size: #8 x 1/2″.
Product Type: Self-Drilling Screw.
Diameter: #8.
Head Style: Round Washer Head.
Drill Point: DP2.
Finish: Zinc Plated (.0001″).

Application: Attachment of steel studs up to 14 gauge (0.075″).

Pullout Performance:
525.9 lbs average ultimate pullout load in 14 ga. steel (0.075″), calculated in accordance with AISI S100.

General Specifications:
Self-piercing screws per ASTM C1002-22 and C-1513-04.
Wood screws per ASME B18.6.1.
Self-drilling screws per ASTM C954-00 and C-1513-04.
