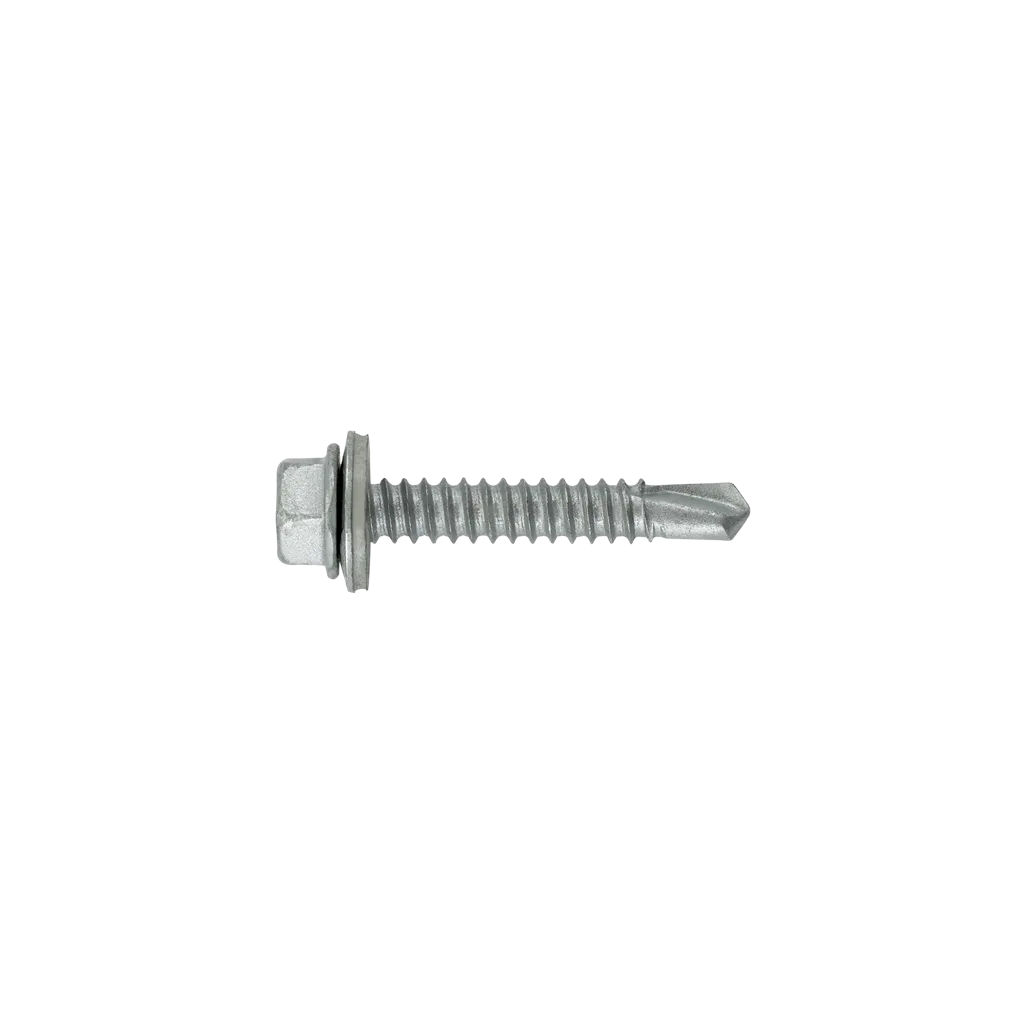

1/4″-14 x 3″ Impax™ SD3 Metal Self-Drill Screw, HWH (3/8″)

Product: 1/4″ Impax™ SD3 Metal Self-Drill Screw, HWH (3/8″).
Size: 3″.
Product Type: Self-Drilling Screw.
Material: Carbon Steel.
Diameter: 1/4″ (6.17 mm).
Threads Per Inch: 14.
Head Style: Hex Washer Head.
Drive Socket: 3/8″ Hex.
Washer: No Washer.
Drill Point: SD3.

Drill Capacity:
1.27 mm – 5.33 mm.
0.050″ – 0.210″.

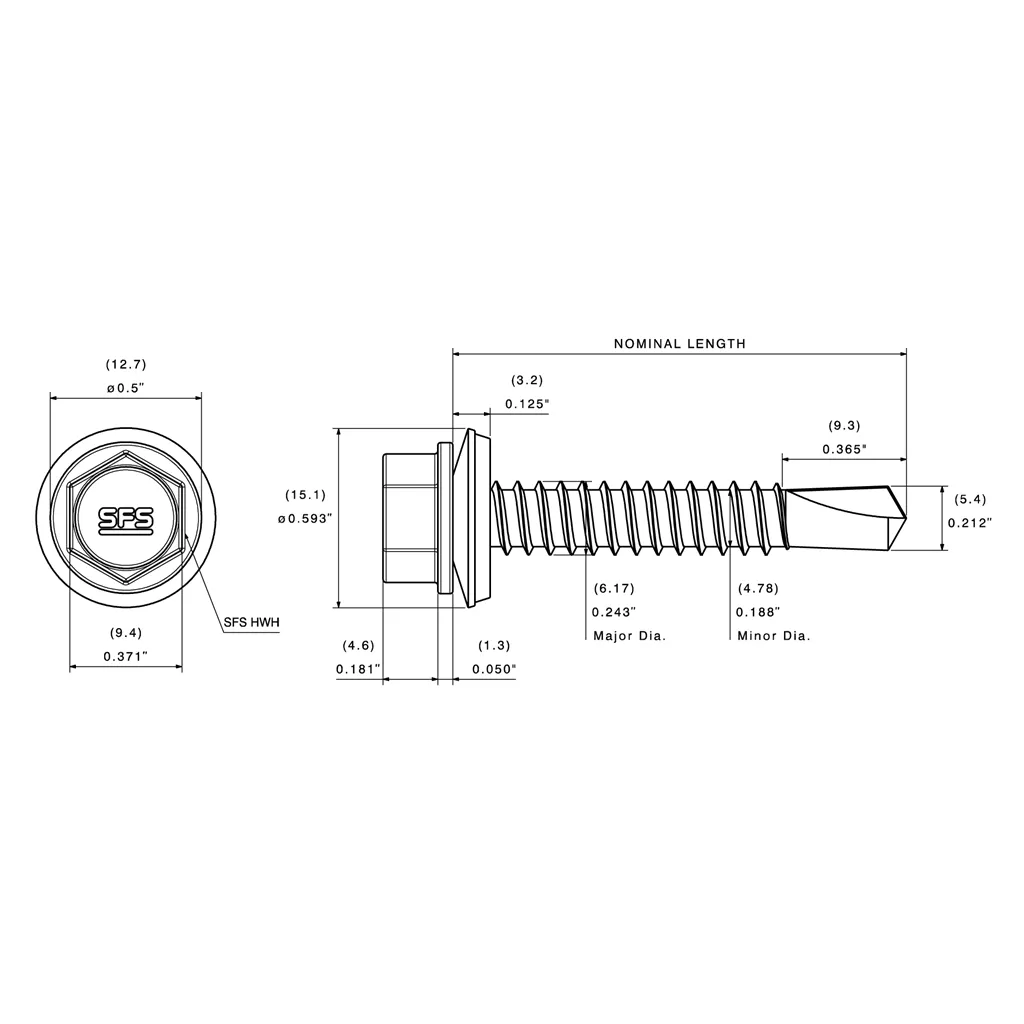

Thread Major Diameter:
0.243″.
6.17 mm.

Thread Minor Diameter:
0.188″.
4.78 mm.

Loading Bearing Length:
0.21″, 0.41″, 0.66″, 0.91″, 1.41″, 1.92″, 2.42″, 3.42″.

Application: Metal panel to light and medium gauge metal applications.

Features & Benefits:
Precision cold forged point designed for superior strength and fast drilling performance.
Designed for low driving and thread engagement torque while providing maximum clamp load.
Reduced drill point diameter provides higher pull-out performance in single purlin attachment.
Available with no sealing washer or with bond seal washer.
VistaCoat® premium coating system.
VistaCoat® limited warranty.

Installation Information:
Install fasteners with a 0–2000 RPM screw gun equipped with depth sensing nose piece.
Fastener length should provide a minimum of 3/16″ penetration of fully developed threads into metal substrate.
Impact guns and hammer drills are not recommended.
