Narrow Stile Rod Exit Device

Product: Narrow Stile Rod Exit Device.

Product Type: Concealed Vertical Rod / Horizontal Exit Device.

Application: Narrow stile aluminum storefront doors and high-traffic commercial openings.

Operation:
Operated by a standard 1-1/8″ mortise cylinder with MS-type cam.
Dual dogging via pins (below housing) or outside cylinder key.

Available Configurations:
48″ Concealed Vertical Rod Exit Device.
48″ Horizontal Exit Device.
Left-hand and right-hand horizontal models available.

Available Finishes:
Aluminum (Clear).
Dark Bronze (Duranodic).

Features & Benefits:
Non-handed design for flexible installation.
Heavy-duty steel vertical rods for strength and durability.
Optional cylinder mounting pad available.
Designed for standard 7′ high doors.
Extension rod kits available for taller openings.
Suitable for aluminum storefront applications.

Included Components:

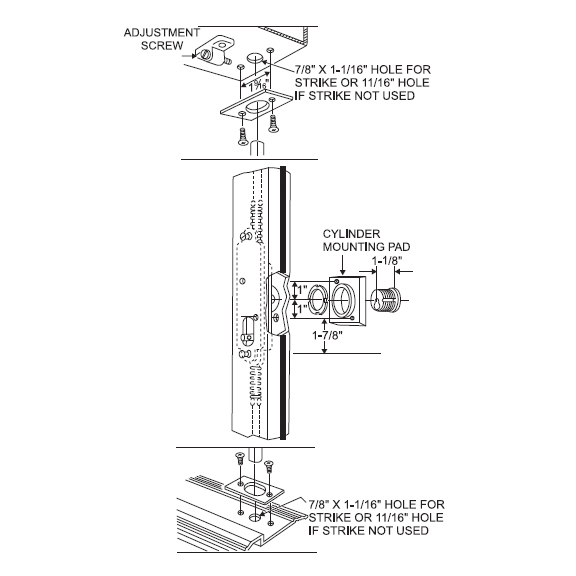

Concealed vertical rod models include top and bottom strikes.
Cylinders and cylinder mounting pads sold separately.
